L2. System Analysis

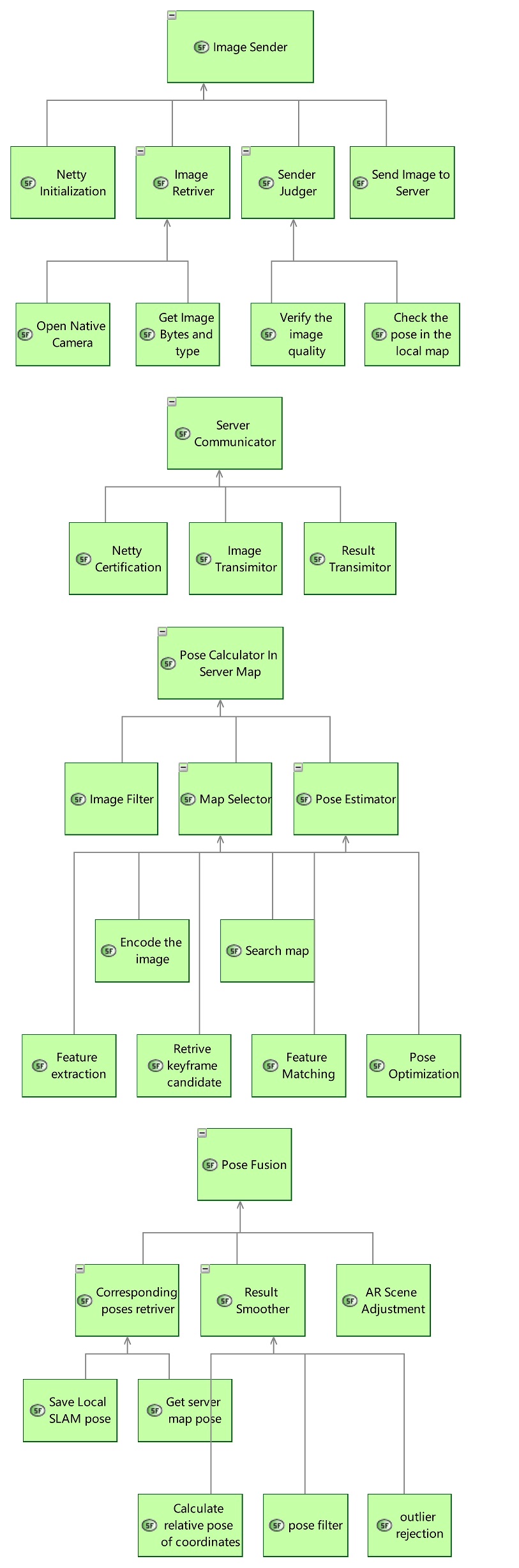

1.1 Sytem Function Breakdown

../../_images/SFBDRootSystemFunction.jpg

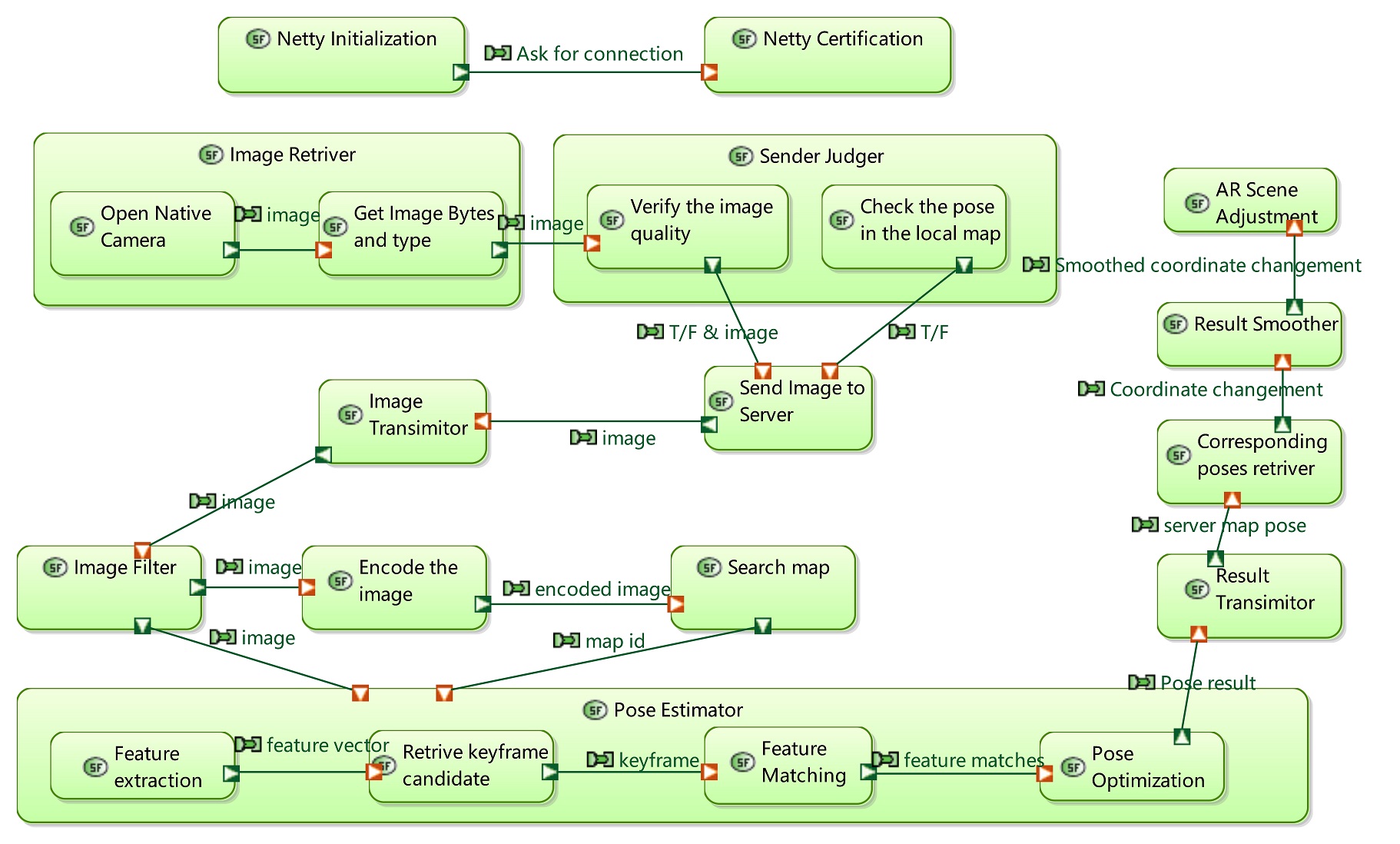

1.2 System Data Flow Blank

../../_images/SDFBRootSystemFunction.jpg

1.3 Scenario

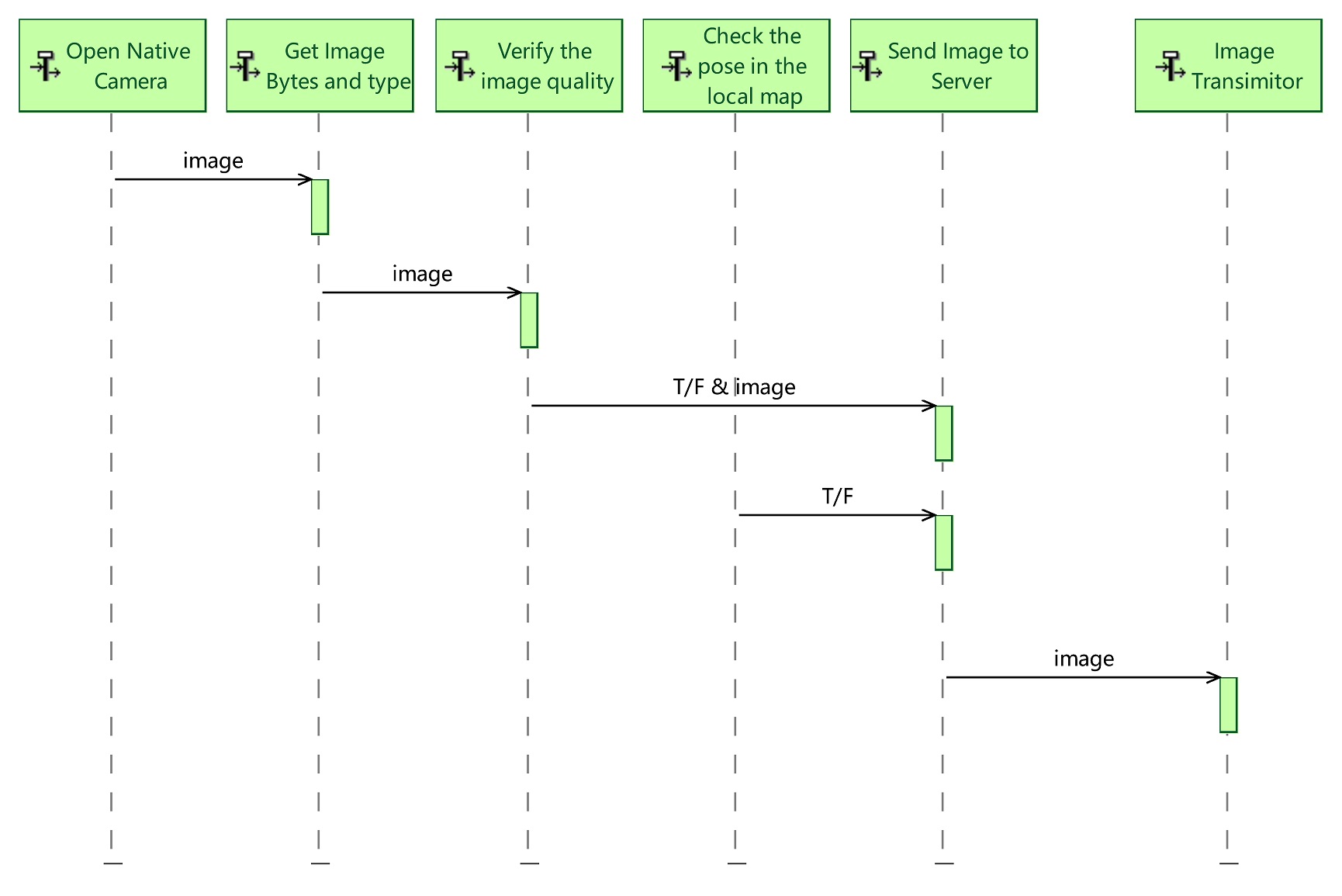

Send image:

  • Retrive image from the native camera(Using interface function offered by ArCore/ArKit/SLAM system).
  • Get the correct format of image data and length, etc (for decode image bytes in the server).
  • Verify the image quality (for an example, filter the blurred image).
  • Also check the pose of the current AR camera, to filter images (for an example, facing the ground).
  • If the image passed these upper two filtering stages, we will send the image to server.
  • Image Transmittor belongs to the server, will transform the image to the next component for algorithm calculation.
../../_images/FSScenarioSendImage.jpg

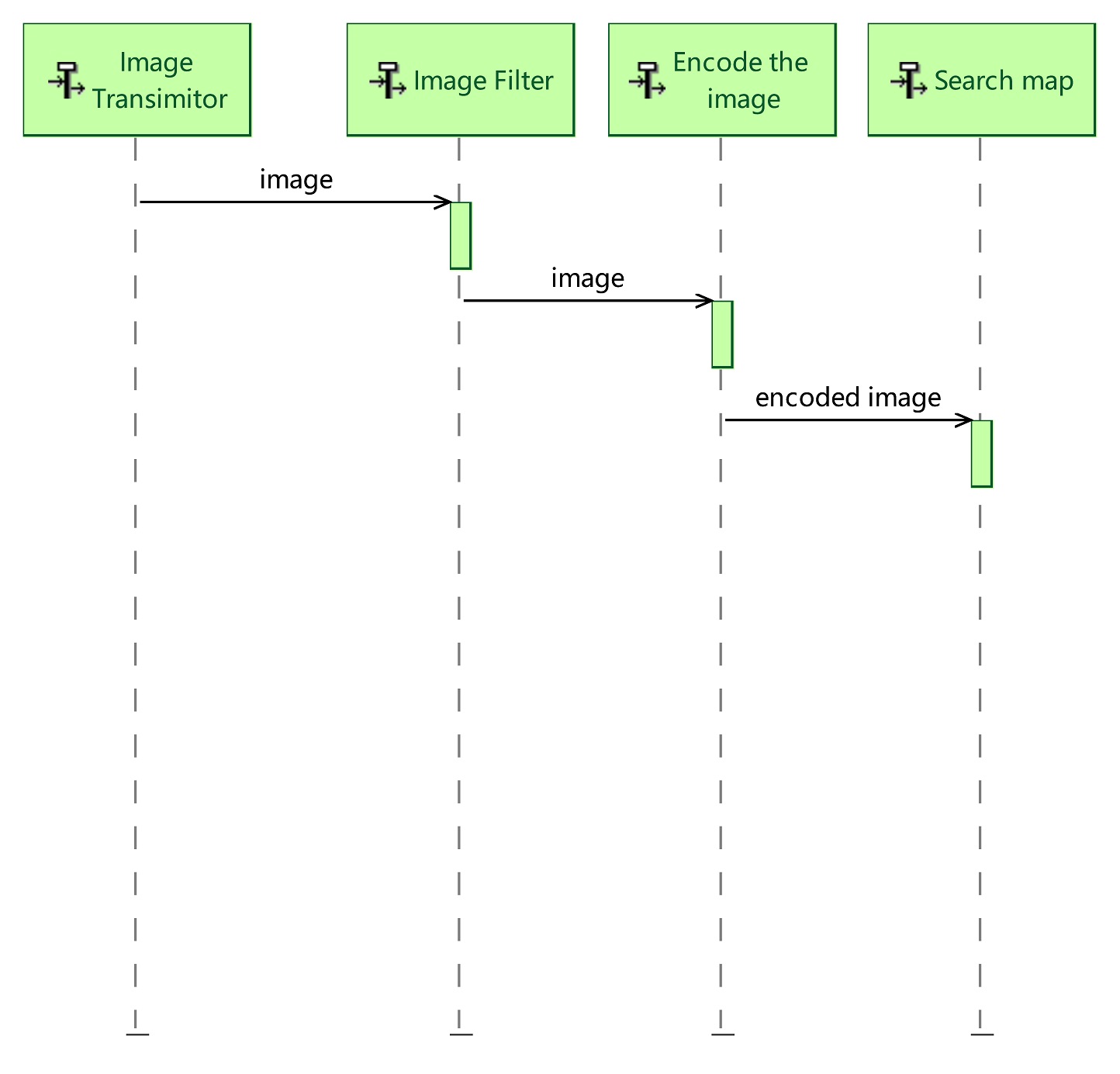

Search the corresponding server map:

As we have multiple offline maps in the server, we need to first determine which map is this image belong to. To realize this function, we have two choice: one by GPS, and another by the following steps.

  • Filter low quality image.
  • Encode the image using deep learning method into a **global descriptor**(which could represent the whole image).
  • Search in our map database by the global descriptor.
../../_images/FSScenarioSearchMap.jpg

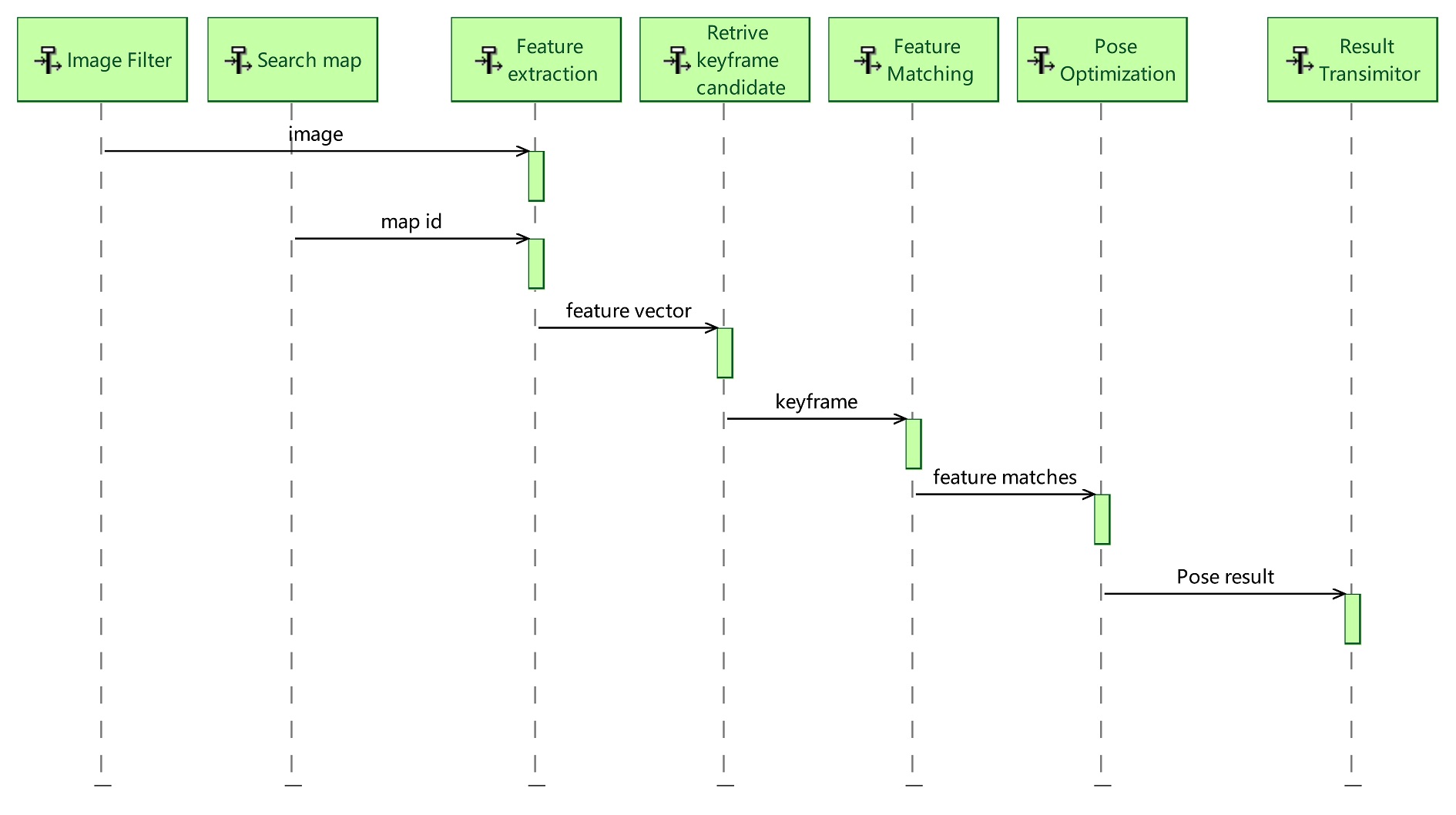

Calculate pose in the map:

  • Get the corresponding image and the map (identify by its ID), to our algorithm built in server.
  • Feature extraction , and image global descriptor calculation.
  • Use global descriptor to retrive the best match keyframe, also filter badly matched keyframes with geometry validation.
  • Use the keyframe as initialization, to find a suitable local map for further feautre matching step.
  • Using the mathed features from the upper stage to estimate a pose, followed by outlier rejection (or robust estimation), and finally using optimization based method to get our final output.
../../_images/FSScenarioLocalization.jpg

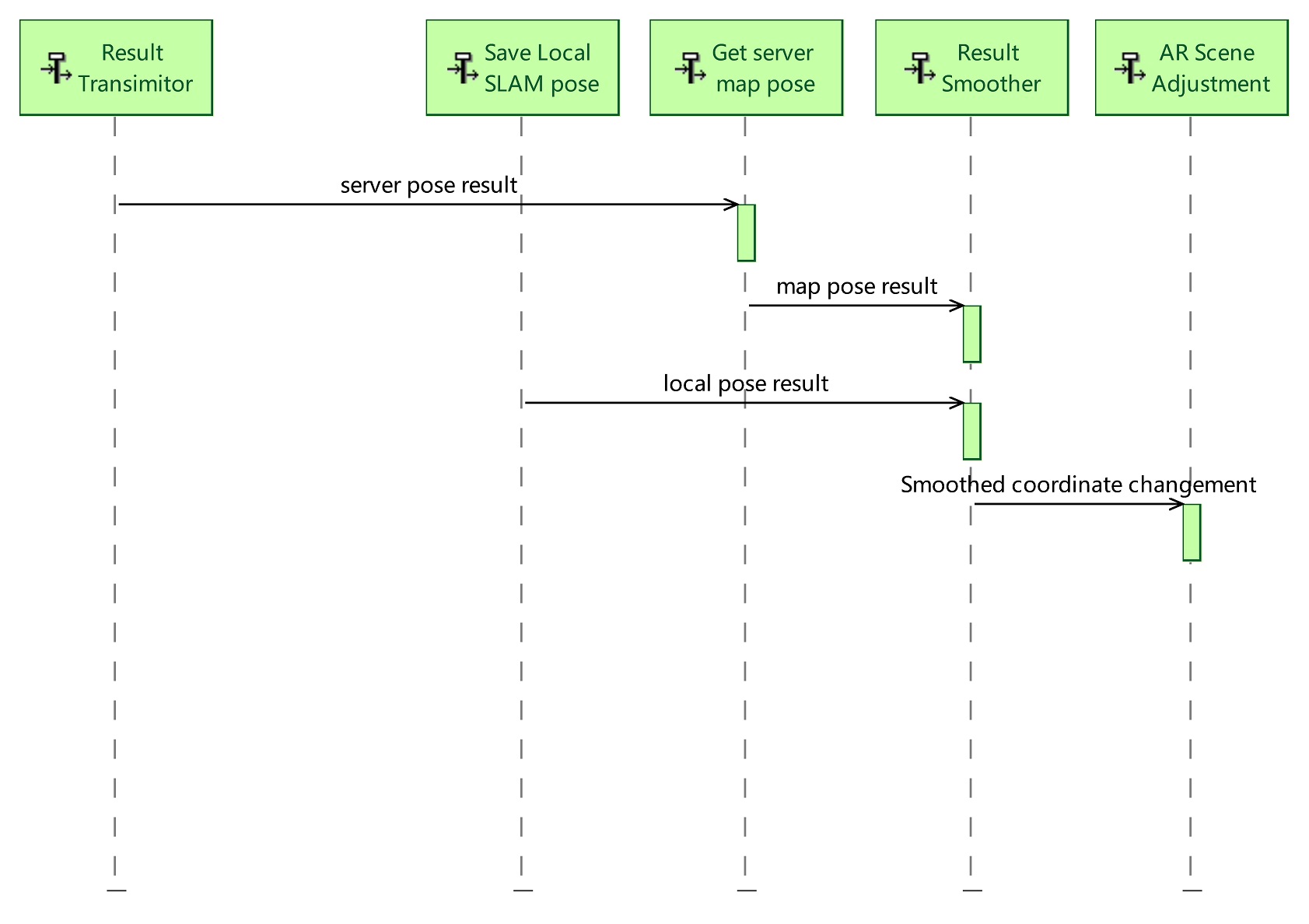

Fusion of the two coordinate system:

  • Get the image’s pose in the local SLAM system (get by SLAM interface), and the pose in the server map coordinate system (get from server response).
  • Calculate the relative transformation matrix of the two coordinate system (the local SLAM system , and the server map system).
  • Using smooth method (we will use a Kalman filter) to find a better result.
  • Adjust the virtual scene in the application, at the right moment, with the right method.
../../_images/FSScenarioPoseFusion.jpg
